Specialized

2019 Specialized Sj Fsr St Men Expert Carbon 29 Satin

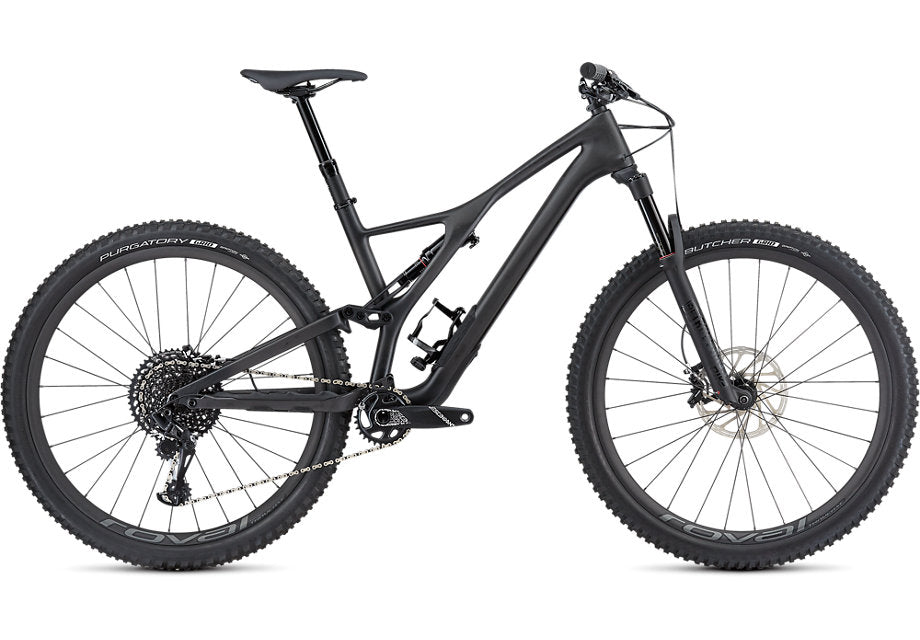

2019 Specialized Sj Fsr St Men Expert Carbon 29 Satin

93218-3402

Regular price $4,999.99 USD
Regular price $4,999.99 USD Sale price $4,999.99 USD
Sale Sold out
Shipping calculated at checkout.
Store Availability
loading..
View full details

Trail bikes can't usually 'shred the gnarly stuff' and 'climb with your XC buddies,' but we're confident in saying that the Stumpjumper Expert ST 29 is totally capable of both. It combines precise handling, perfect suspension kinematics, and a complete abandon of proprietary nonsense with a slightly steeper geometry, less travel (130mm front/120mm rear), and 29-inch wheels to make it a true 'do-it-all' trail bike.

Our design goal for the new Stumpjumper was simple—build the ultimate trail bike, one that feels telepathic. And it turns out that this feeling all comes down to stiffness. Think of it this way: when the frame's telling your hands one thing and your feet another, your brain gets confused with the imbalance and the bike feels unstable. In order to fix this, we had to get to work on dialing-in the materials, shapes, and the layout.

We started by creating our own mountain-specific stiffness test, and then we looked at the layout with Finite Element Analysis (FEA) to see where we could get the biggest stiffness improvements. This led to a big discovery: The Large and X-Large frames needed more front-end stiffness while the Smalls and Mediums were just fine. We were able to create a frame design that was 20% more efficient. And in the end, this proved to be one of the lightest trail frames on the market, today.

When designing the frame with the stiffness targets being a main goal, we developed a radical new sidearm design. The front-end and rear-end are connected at three points, and the sidearm helps keep all these points super stiff and connected, all while taking about 100 grams out of the rear-end. More explicitly, this minimizes frame flex when the rear suspension is active.

We continued down the suspension path with a custom Rx Trail Tune on both the fork and rear shock. Suspension performance is highly dependent on frame, wheel, and rider size, so we use our Rx Tune to get each bike to land in the middle of the adjustment spectrum, and this gives you the biggest possible range to fine-tune your ride. Another focal point of the tune was matching the suspension characteristics between wheel sizes—we developed a specific Rx Tune for each platform. So, no matter what wheel size you prefer, you'll get perfectly linear suspension.

Steps were also taken to make this bike easy to live with. Threaded bottom brackets make a triumphant return, and we made room for up to a 2.6" tire. You're also free to run whatever aftermarket rear shock you want, since we're using standard metric shocks. We revamped the SWAT™ box, too, making it sleeker, lighter, and with more volume. And customization is furthered with a Flip Chip that lets you to dial-in your Stumpy to your riding style. Switch it from High to Low and it drops your bottom bracket 6mm and slackens the head tube by half-a-degree. Little details also jump out to surprise you, like a newly designed ribbed chainstay protector that makes chain slap a thing of the past and nearly silences the drivetrain. Lastly, we seriously couldn't make cable routing any easier on carbon models. Full tubes can be found throughout the carbon frame, so all you have to do is push the cable and it'll come out the other end. No more lazy loop, hidden stashes of magnets, pokey spokes, or pillows to cry in.

For the build, you get a solid components package with a full SRAM GX1 Eagle drivetrain, SRAM Guide R disc brakes, RockShox Pike RC fork and a Deluxe RT3 rear shock (130/120mm of travel respectively), and Roval Traverse Carbon 29 wheels.

Product Information

bottom bracket

SRAM GXP

cassette

SRAM GX Eagle, 12-speed, 10-50t

chain

SRAM GX Eagle, 12-speed w/ PowerLock®

chainrings

30T

crankset

Truvativ Descendant, aluminum, Boost™ 148, 170mm crankarm, 24mm spindle

fork

RockShox Pike RC, DebonAir, rebound / low-speed compression adjust, tapered steerer, 51mm offset, 15mm Maxle® Stealth thru-axle, 15x110mm Boost™, 130mm of travel

frame

FACT 11m, full carbon chassis and rear end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 120mm of travel

front brake

SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200mm rotor

front hub

Specialized, sealed cartridge bearings, 15x110mm spacing, 28h

front tire

Butcher, GRID Casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"

grips

Specialized Sip grip, half-waffle, S/M: regular thickness, L/XL: XL thickness

handlebars

Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp

inner tubes

Standard, Presta valve

pedals

Specialized Dirt

rear brake

SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 180mm rotor

rear derailleur

SRAM GX Eagle, 12-speed

rear hub

Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h

rear shock

RockShox Deluxe RT3, Rx Trail Tune, rebound and 3-position compression adjust, 190x42.5mm

rear tire

Purgatory, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"

rims

Roval Traverse Carbon 29, hookless carbon, 30mm inner width, 28h, tubeless ready, hand-built
